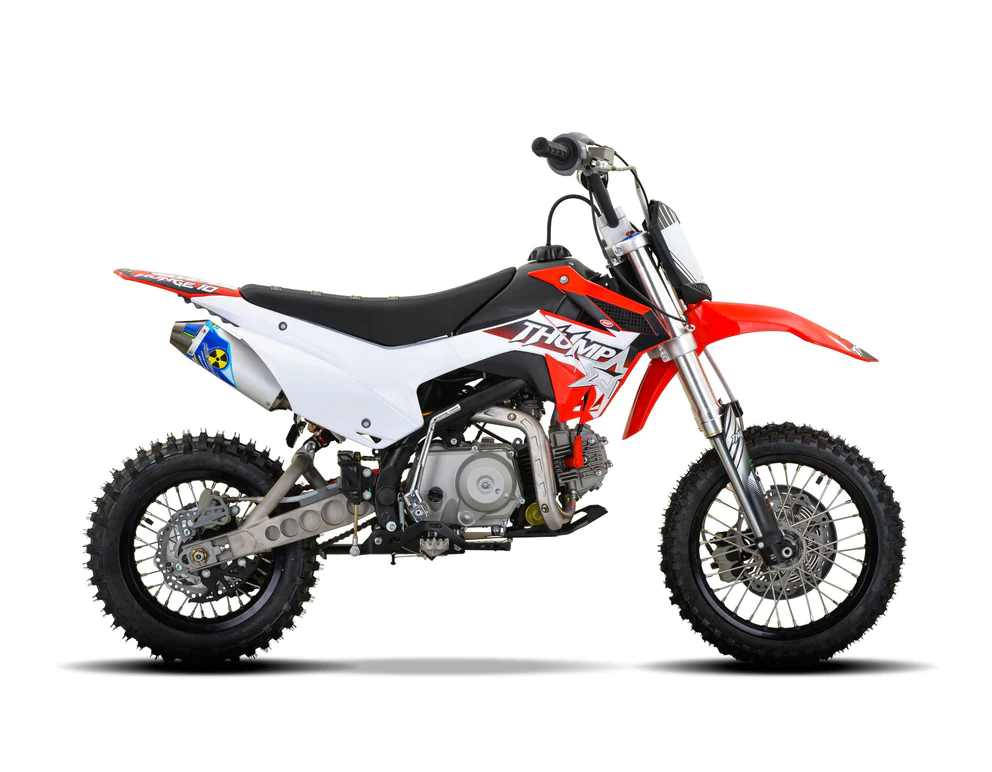

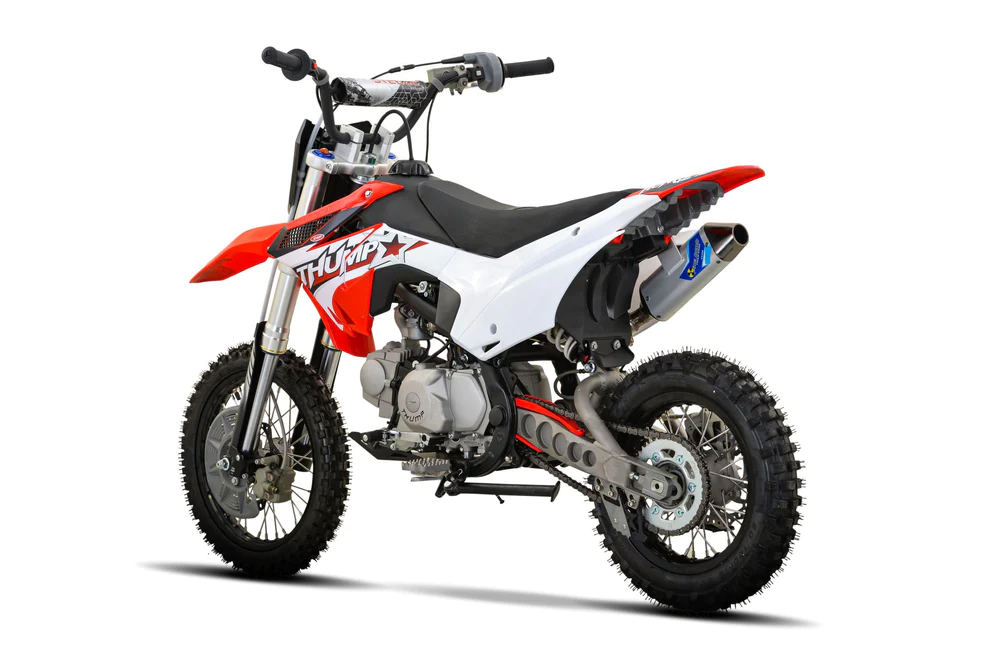

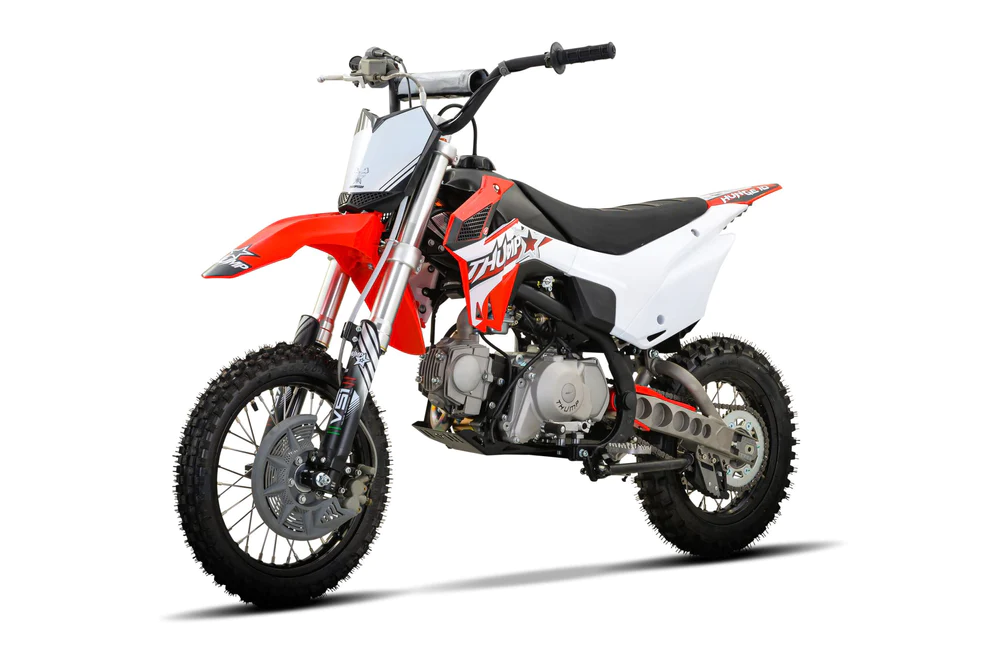

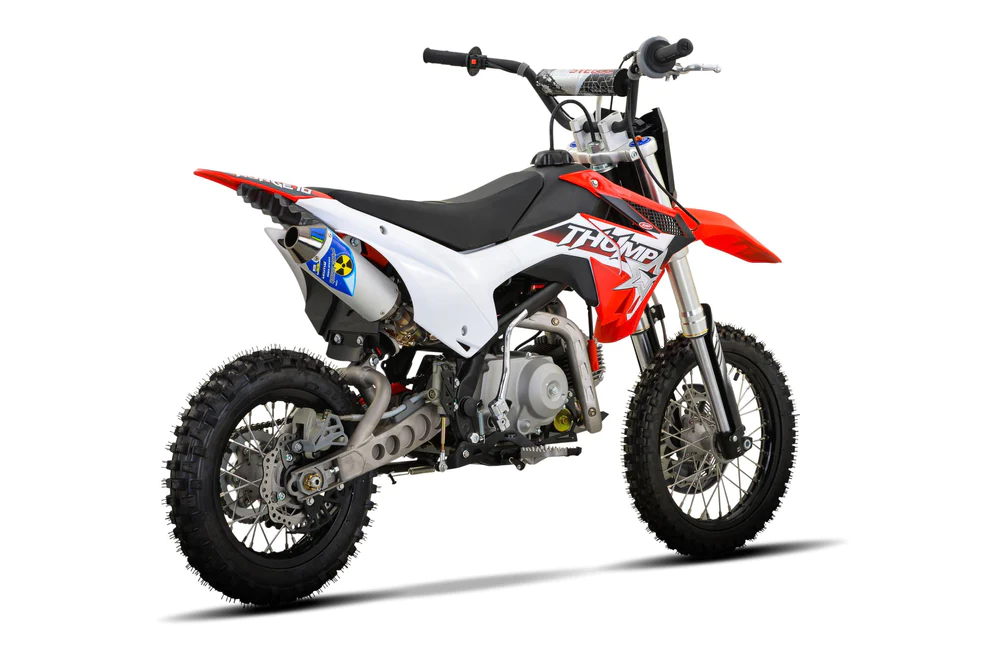

Thumpstar - HUNGE 110-C

$2,699.00[MSRP Ride Away]

HUNGE 110 1st Image
Database

Assembly
Troubleshooting
Service
Brochure
Engine Parts List
Parts Breakdown List
Instruction Manual
Suspension / Wheel
Graphic Template
Description

20th Anniversary Edition: A Nostalgic Tribute to the Early Days with Modern Updates

This one's dedicated to the fans! We're offering Old School Thumpstars worldwide in the vibrant 110 NEON edition. Secure your piece of history today.

The "Hunge" edition boasts a retro swingarm reminiscent of a model dating back to 2004, but it's equipped with a 110 engine and an enclosed airbox instead of the pod filter. The modern plastics give it a sharp look, and it's available in three stunning color options: RED, NEON, and BLUE.

Wheels

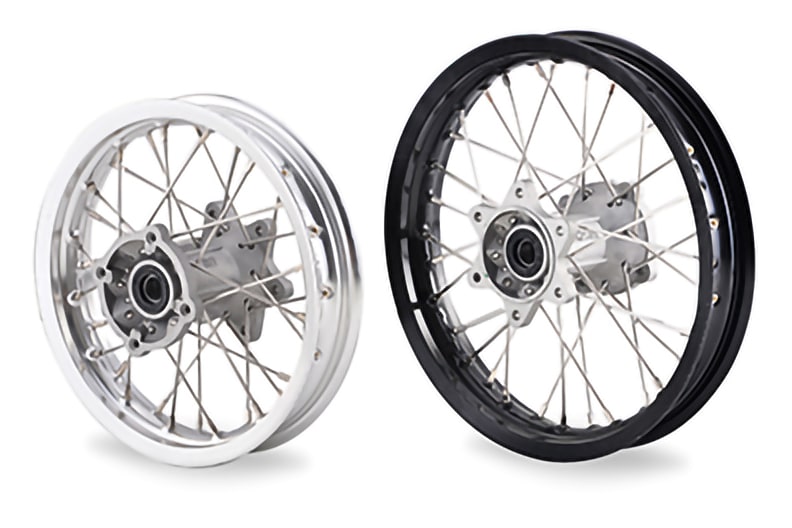

AK7 Wheels

We’ve redesigned and strengthened our AK7 wheels to give you the comfort of knowing buckled rims and loose spokes are a thing of the past. The cast aluminium hub has been changed to run a 6-bolt sprocket and 4-bolt disc while moving to a 20mm axle that allows for oversized wheel bearings. We’ve swapped those stretch-prone steel spokes for anti-stretch and snap-resistant stainless spokes. And lastly, the rims have been upgraded to top of the line aluminium alloy.

HUNGE110 Wheels
HUNGE110 Suspension

Suspension

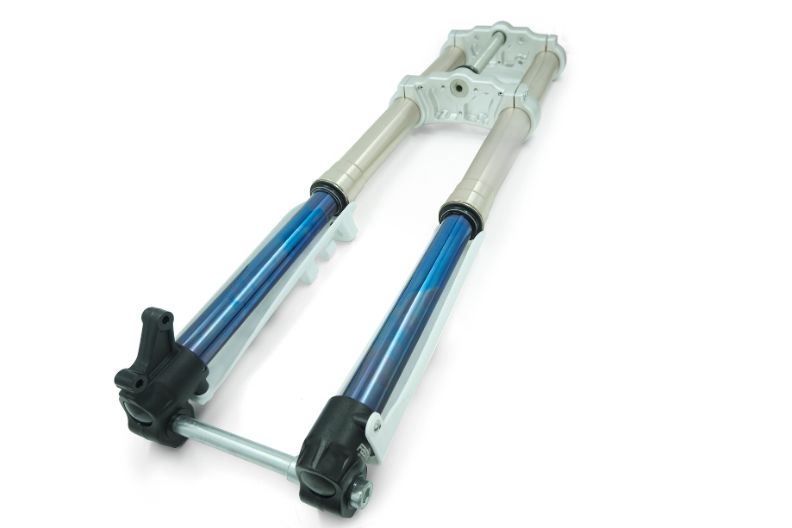

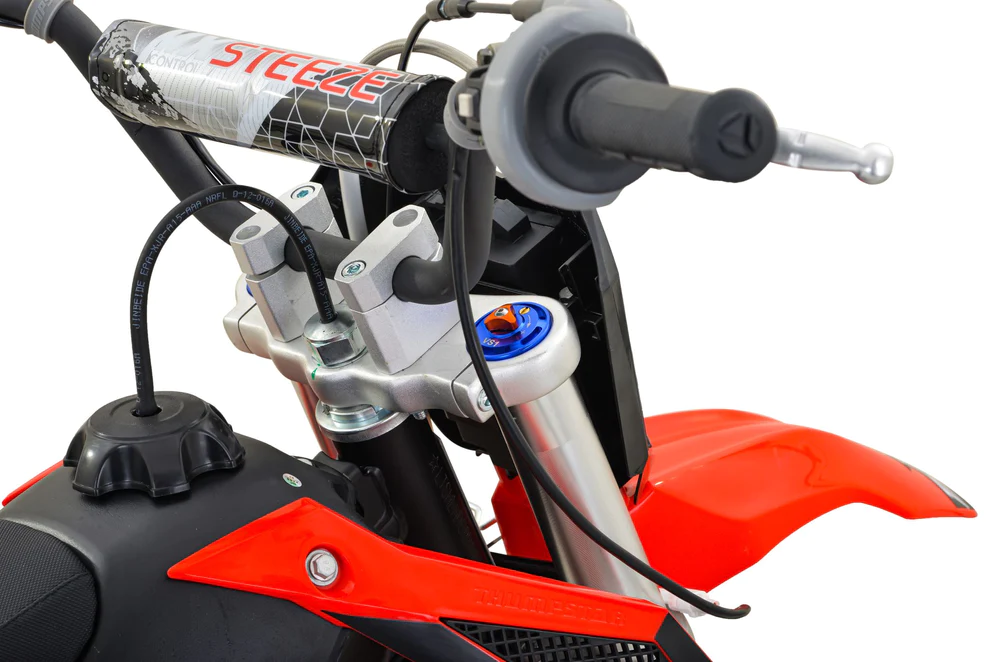

VS1 Front Forks

Introducing our latest VS1 front forks featuring cutting-edge TiN (Titanium Nitride) coating, delivering a smooth and stable ride over bumps, ruts, and jumps. Enhanced outer parts and reliable valving ensure stability and better feedback, even on challenging surfaces. Plus, enjoy increased rigidity for handling bigger impacts with ease.

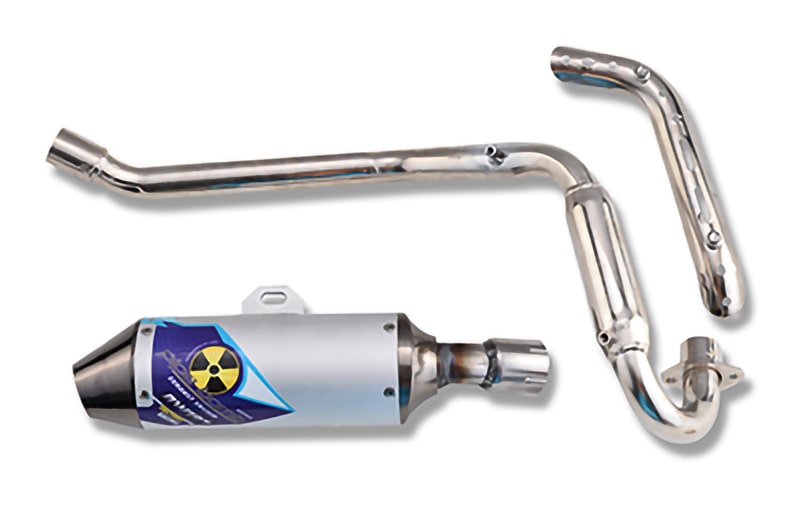

Header

Pipe Bomb 2.0 head pipe

A redesigned frame came with requirements for a new exhaust header. The new Pipe Bomb 2.0 head pipe from Thumpstar allows exhaust gasses to expand, cool, and ramp back up at a higher velocity when exiting. This results in a greater bottom and low-end response while keeping the tuning in check for the top end.

HUNGE110 Header
HUNGE110 Footpegs

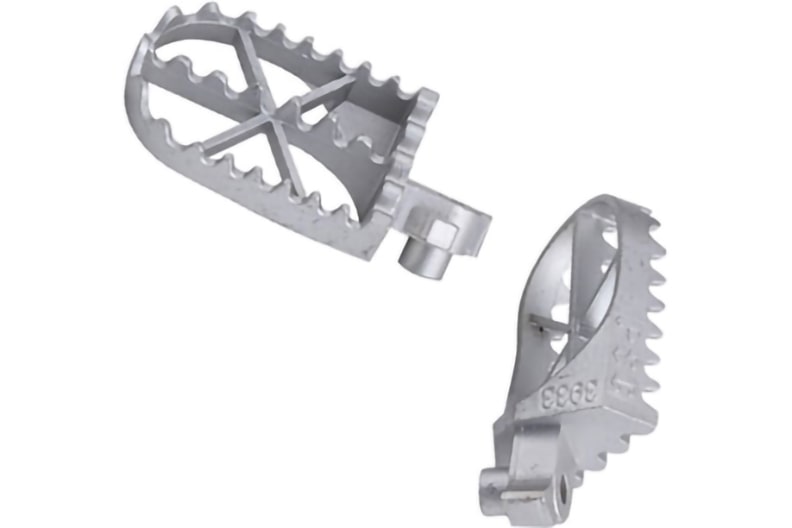

Footpegs



Our new footpegs have been made 56mm wide, the same as aftermarket motocross 250/450 footpegs for better grip and rider comfort. We used high-quality stainless steel material for strength and to look fresh for years to come, finished off with perfectly fitting springs.

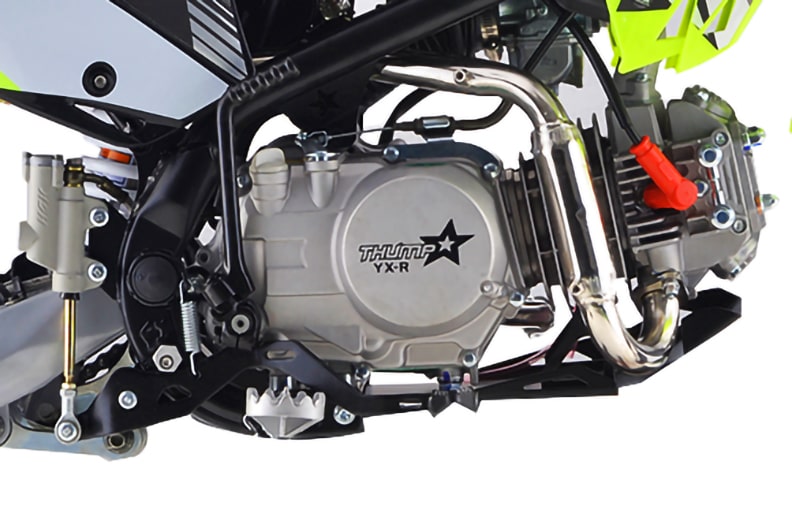

Engine

YX Electric start

The engine provides the necessary power to accelerate swiftly off the line, delivering impressive horsepower at the crank. With precision engineering by Yin Xiang, this engine package ensures reliability and strength, consistently meeting performance demands.

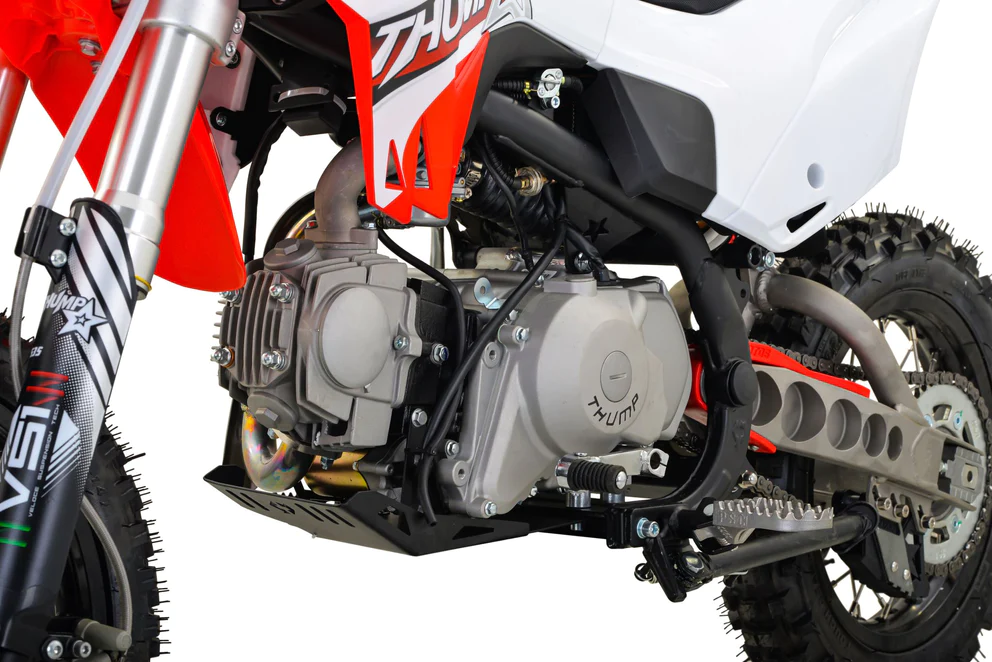

HUNGE110 Engine
HUNGE110 Airbox

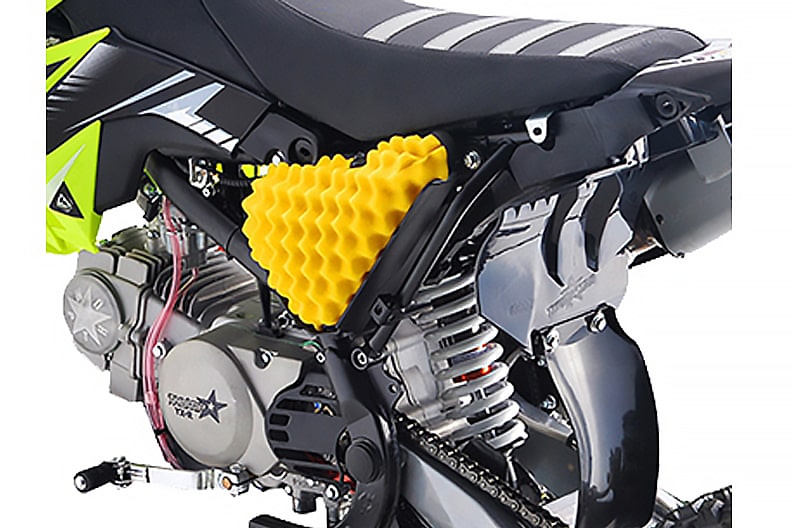

Airbox



One of our most exciting developments for 2020 was the design and production of our very own airboxes for the TSX and the TSB. Advances in 3D modelling and printing have allowed us to give you a system that provides much better air filtration with a dual-layer filter while increasing airflow to the engine. The airbox prevents harmful particles from entering your engine where traditional minibike foam filters would typically fail.

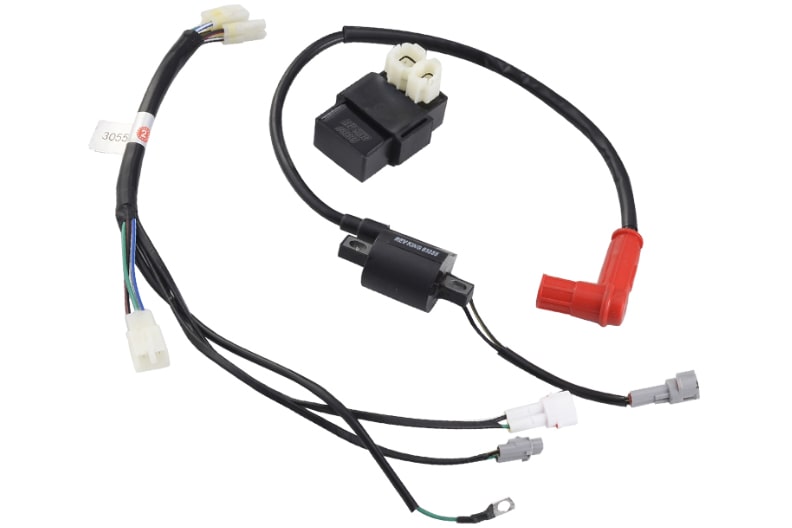

Waterproof Electronics



All of our new bikes come equipped with redesigned looms and electronics. We have done away with single flimsy wires and connectors, and replaced them with heavy-duty multi-core wiring, and sturdy connectors. Accompanied by water proof plugs and electronics such as the Revking CDI, Rectifier, and Coil, makes this is a far superior package to any of the competition.

HUNGE110 Wiring

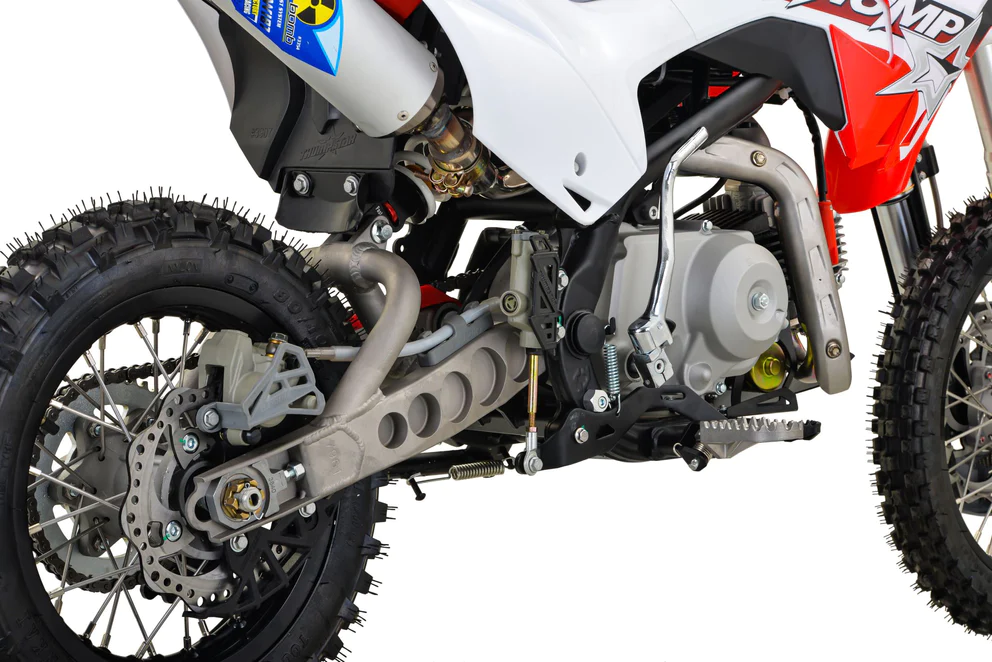

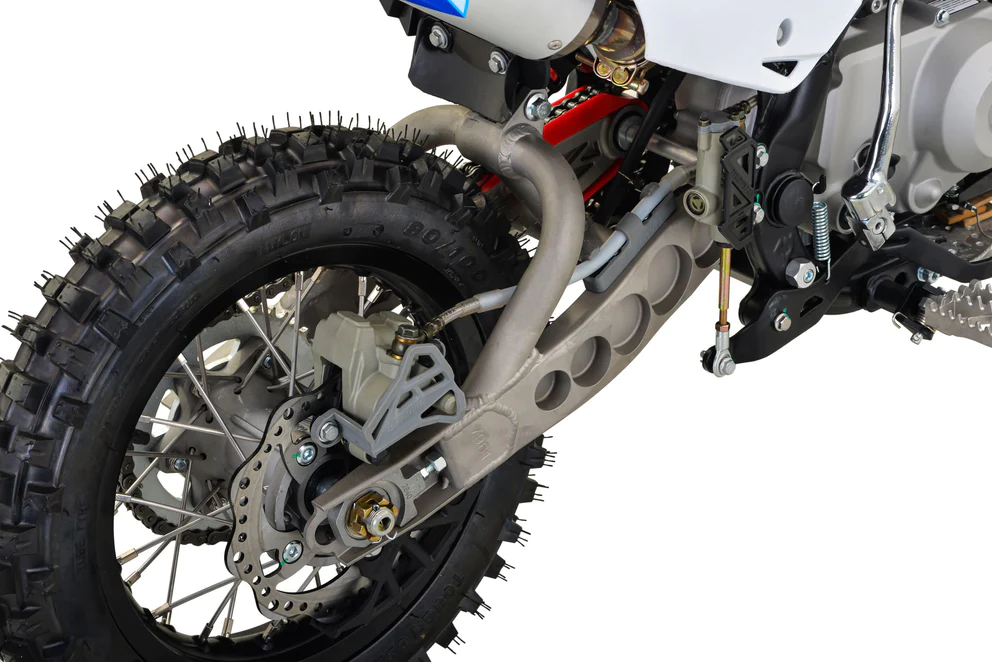

HUNGE110 Rear Axle

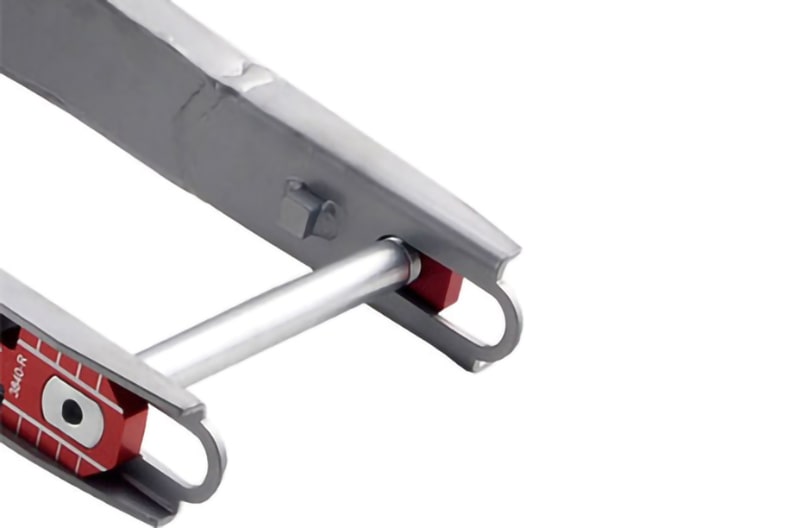

Rear Axle



We have increased our rear axle to 20mm and made it hollow, then heat treated it which makes it a similar weight to the 15mm axle but much stronger. Finally, we made it a Lockheed design so only one 30mm spanner is needed for removal.

Free Spare Parts Kit

Thumpstar Free Spare Parts Kit

Product Packaging

Pitbike Assembly & Servicing

Specifications

ENGINE & TRANSMISSION
Engine Zongshen | 4 Stroke
CC Rating 110cc
Gearbox Semi Automatic | Centrifugal Clutch | 4 speed (N1234)
Starter Kick/Electric Start
Carburetion PE 19mm
Exhaust Pipe Bomb DW-2 | 38mm | Header Bomb
Final Drive PSC 6 Bolt Sprocket | 428 HD Chain
Top Speed 90kph/55mph (depending on gearing)

SUSPENSION, BRAKES, & WHEELS
Suspension Front VS1 Adjustable Forks | Length 700mm | 45/48mm
Suspension Rear DNM Adjustable 270mm 350lbs Rear Shock

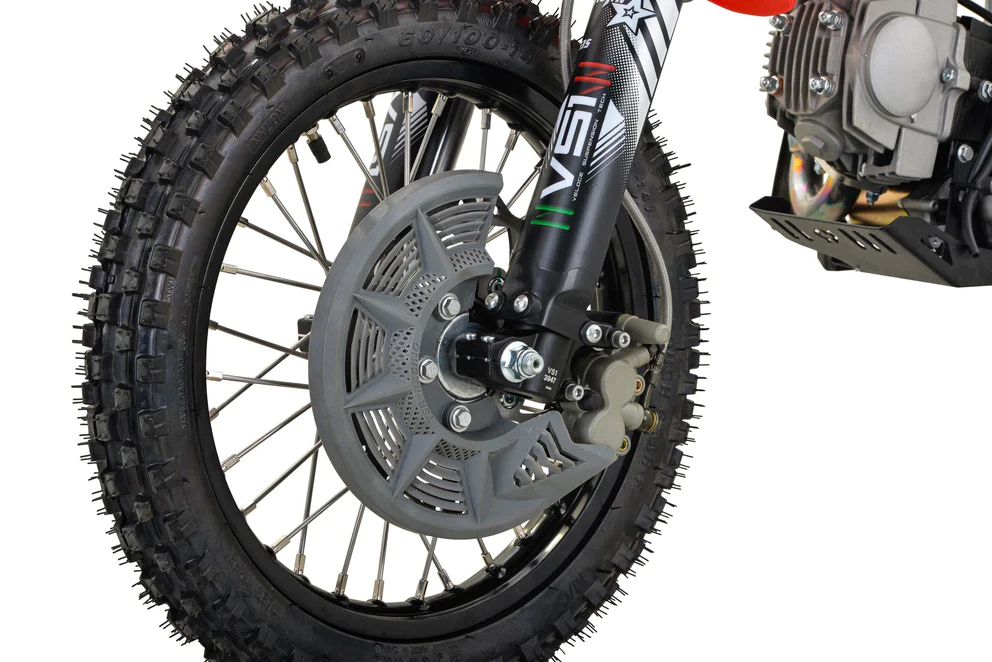

Brakes Front 220mm Disc | RZ Dual Piston
Brakes Rear 190mm Disc | HSK Single Piston
Wheel & Tire Front 7075 Alloy Rim | 70/100-14
Wheel & Tire Rear 7075 Alloy Rim w/ Rim Lock | Stainless Spoke| 80/100-12

DIMENSIONS & WEIGHT
Wheelbase (axle to axle) 1230mm | 48.5"
Seat Height 750mm | 29.5 (+10mm -10mm)
Product Weight N.W | G.W 80/90 kg | 176/198 lbs
Tank Capacity 3.4 Litres | .9 Gallon
Product Packing Size 1420x430x640mm | .40m3
